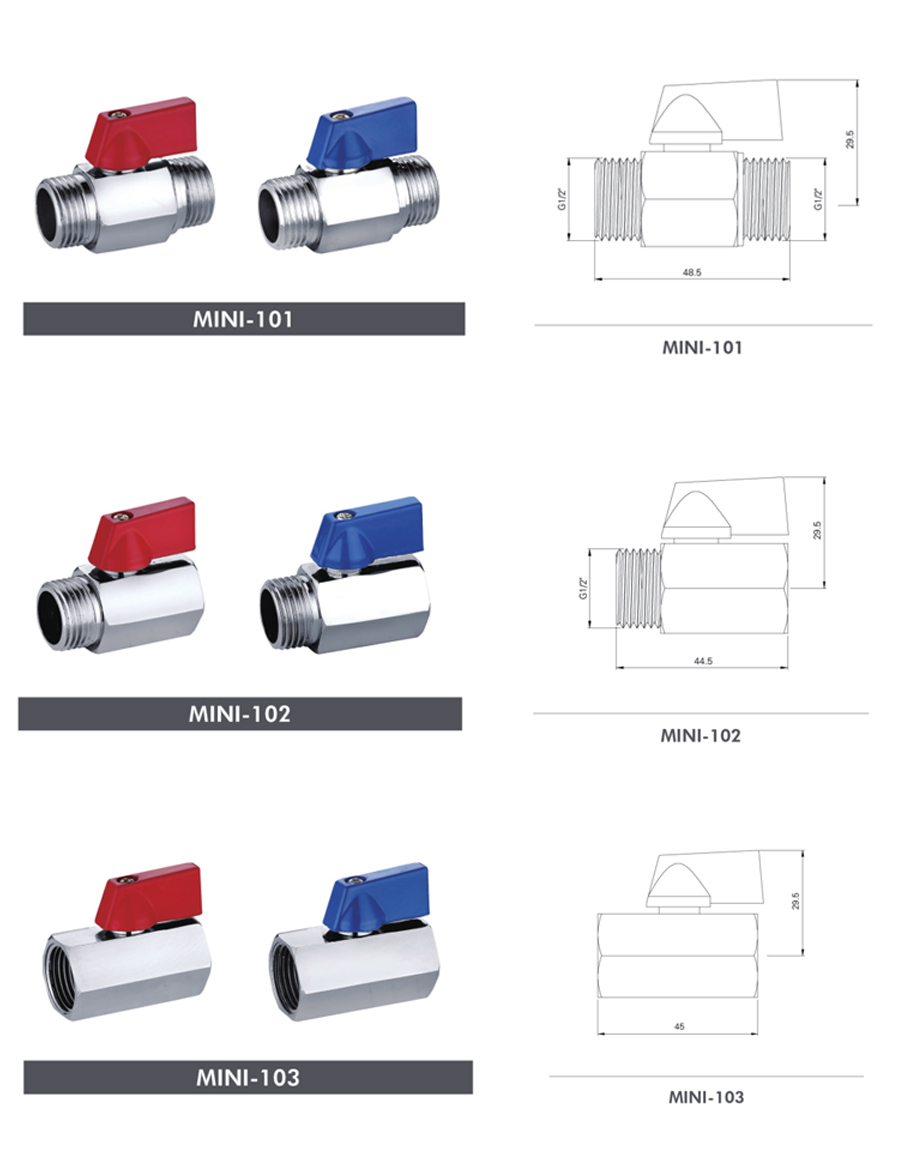

MINI-101 Mini Ball Valves

Technical Reference:

●Forged brass body

●Polished,chrome plated

●Male thread according to IS0288/1

●Operating Pressure: Max.10 bar

●Test Pressure: 16 bar (1 Mpa= 1Obar=1 45PSI)

●Hot water temperature: max.80℃

●100% leak tested

MINI-101 Mini Ball Valves

ITEM No.	SIZE	[PCS]	[PCS]	MEAS[cm]
MINI-101	1/4"Mx1/4"M	25	300	38.5x25x22
	3/8"Mx3/8"M	25	300	38.5x25x22
	1/2"Mx1/2"M	20	240	38.5x25x22
	3/4"Mx3/4"M	12	144	38.5x25x22
MINI-102	1/4"Mx1/4"F	25	300	38.5x25x22
	3/8"Mx3/8"F	25	300	38.5x25x22
	1/2"Mx1/2"F	20	240	38.5x25x22
	3/4"Mx3/4"F	12	144	38.5x25x22
MINI-103	1/4"Fx1/4"F	25	300	38.5x25x22
	3/8"Fx3/8"F	25	300	38.5x25x22
	1/2"Fx1/2"F	20	240	38.5x25x22
	3/4"Fx3/4"F	12	144	38.5x25x22
