YD316 Angle Valves With Filter

YD316 Angle Valves With Filter
Technical Reference:
●Forged brass body
●Polished,chrome plated
●Male thread according to IS0288/1
●Operating Pressure: Max.10 bar
●Test Pressure: 16 bar (1 Mpa= 1Obar=1 45PSI)
●Hot water temperature: max.80℃
●100% leak tested
YD316 Angle Valves With Filter

YD316 Angle Valves With Filter

ITEM No. SIZE [PCS] [PCS] MEAS[cm]
YD316 1/2"Mx3/4"Mx3/8"M 1 60 39.5x36x22
PREV：No previous article
NEXT：YD301B Angle Valves With Filter

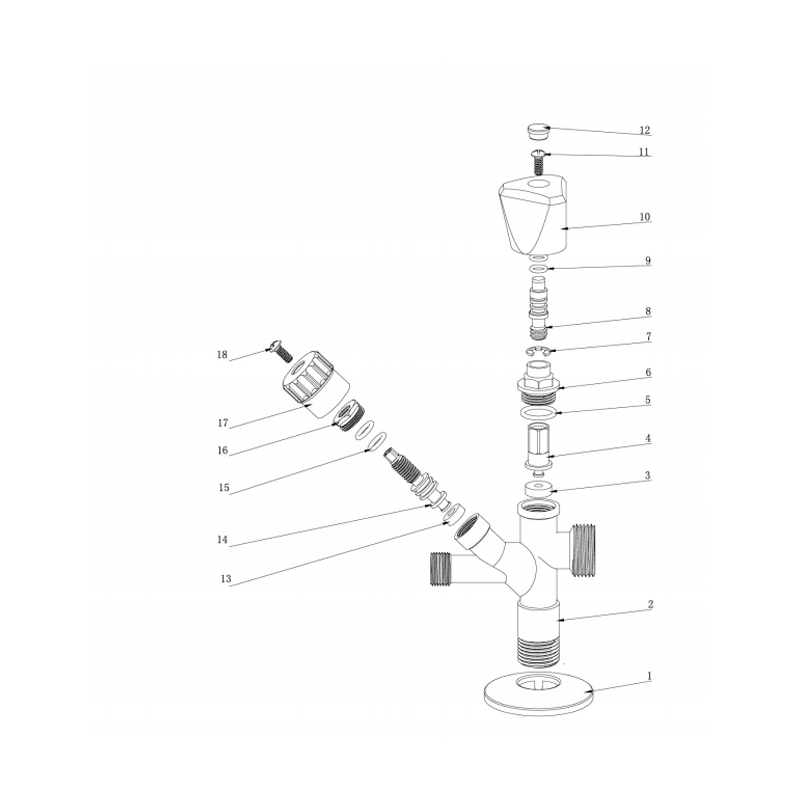

NO. Name Material Qty.
1 Rosette Stainless Steel 1
2 Body Brass 1
3 Washer Nbr
4 Washer Plate Brass 2
5 O-Ring Nbr 1
6 Cap Brass 1
7 Circlip Brass 1
8 Stem Brass 1
9 O-Ring Nbr 2
10 Handle Abs 1
11 Handle Screw Steel 1
12 Plastic Cap Plastic 1
13 Gasket Nbr 1
14 Stem Brass 1
15 O-Ring Nbr 2
16 Packing Nut Brass 1
17 Handle Abs 1
18 Bolt Steel 1
