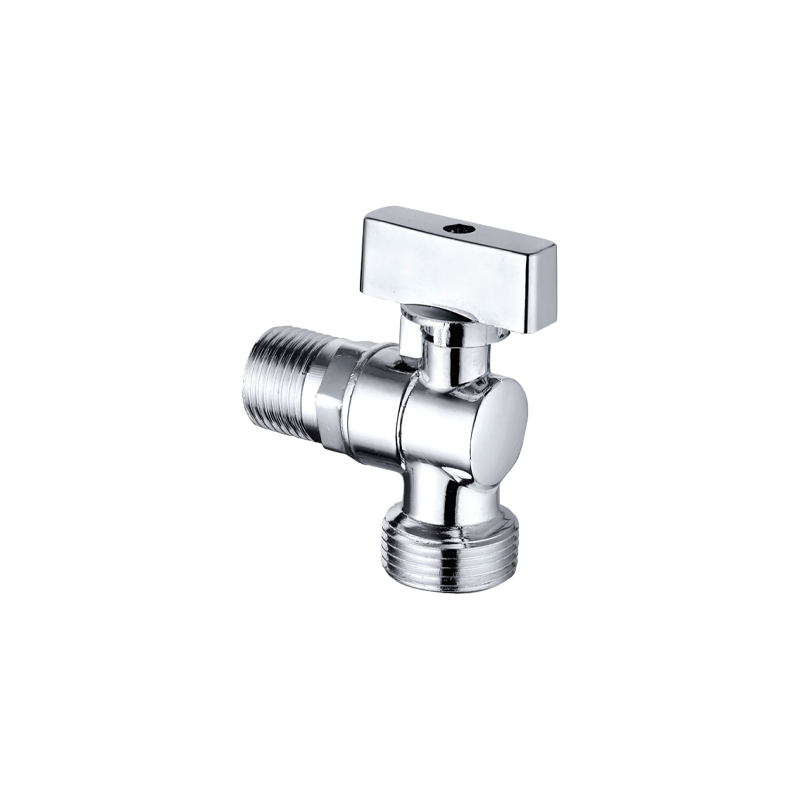

YD401 Angle Ball Valves

YD401 Angle Ball Valves
Technical Reference:
●Forged brass body
●Polished,chrome plated
●Male thread according to IS0288/1
●Operating Pressure: Max.10 bar
●Test Pressure: 16 bar (1 Mpa= 1Obar=1 45PSI)
●Hot water temperature: max.80℃
●100% leak tested
YD401 Angle Ball Valves

YD401 Angle Ball Valves

ITEM No. SIZE [PCS] [PCS] MEAS[cm]
YD401 1/2"x1/2" 20 120 39.5x30x15
1/2"x3/4" 20 120 39.5x30x15
YD401 with check volve 1/2"x3/4" 20 120 39.5x30x15
PREV：No previous article
NEXT：YD101B Angle Ball Valves

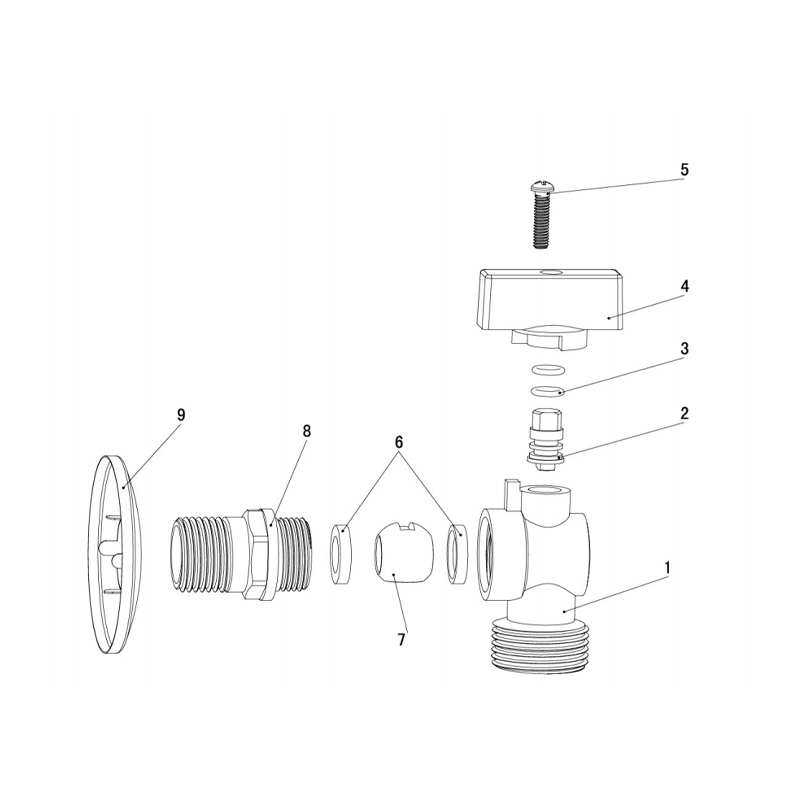

NO. Name Material Qty.
1 Body Brass 1
2 Stem Brass 1
3 O-Ring NBR 2
4 Handle ABS 1
5 Handle Screw Steel 1
6 Ball Seat PTFE 2
7 Ball Brass 1
8 Adapter Brass 1
9 Rosette Stainless Steel 1
