Water Hammer Arresters

Water Hammer Arresters
SPECIFICATION:
water hammer arresters shall be
required in piping systems. Water hammer arresters shall be AA size
to control water hammer caused by quick-closing valves on residential
fixtures. Arresters shall be effective when installed at any angle. Arresters
shall be approved for installation with no access panel required. Water
hammer arresters shall be ANSI/ASSE 1010 2004 certified. Arresters
shall be sized and placed per manufacturer's instructions.
Water Hammer Arresters

Water Hammer Arresters

PREV：No previous article
NEXT：No next article

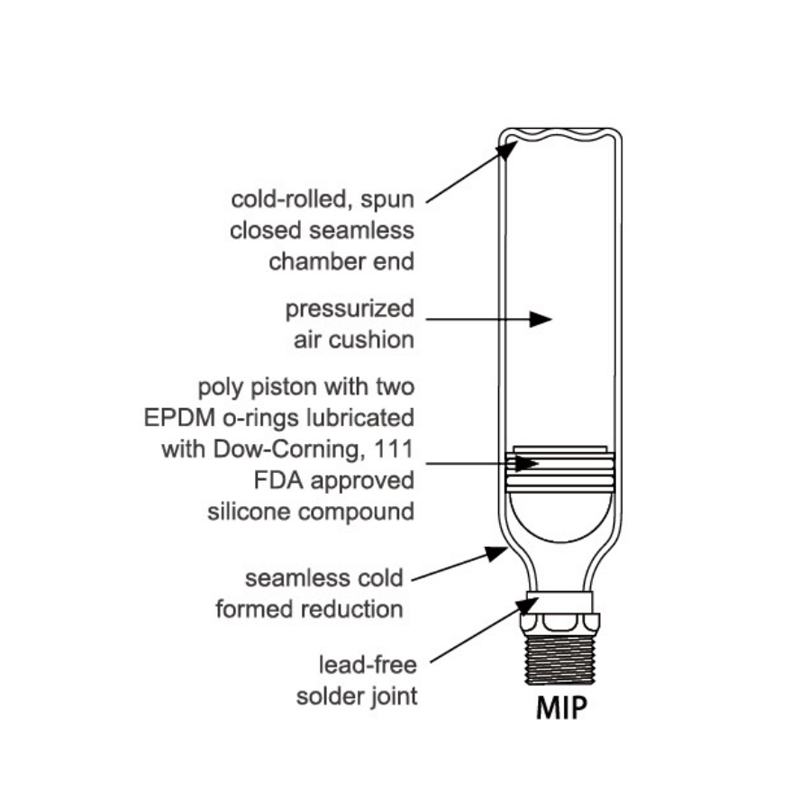

MATERIALS
Arrester body: type L copper tube
Piston: PA piston with two EPDM o-rings
Male Thread Fitting: C46500 Lead Free Brass
Piston lubrication: NSF approved silicone compound
WORKING LIMITS
Max working temperature: 250ºF
Max working pressure: 250 PSIG
Burst tested: to 1,500 PSIG

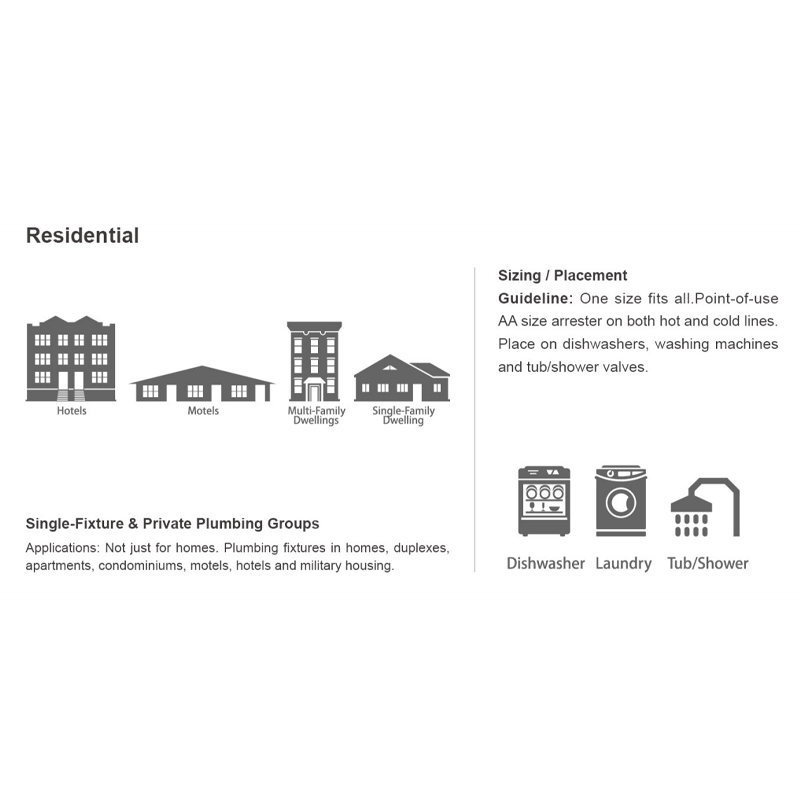

INSTALLATION
Angle: May be installed at any angle
Access panels: No access panels required
CERTIFICATIONS/APPROVALS
Certified by ASSE to the ANSI/ASSE 1010-2004 standard, AA size
cUPC listed to UPC and Canadian codes and standards

Warmly welcomes you to inquire

TEL: 0086-576-89929181
MOB: +86-13857682133
FAX: 0086-576-87138778
EMAIL: sales@ydvalve.com

More Than 20 Years Experience To Global Supply of High Quality Valves

Found in 1999 in China，ZHEJIANG YUNDA FLUID INTELLIGENT CONTROL CO.LTD. is a professional manufacturer in plumbing industry ,We have more than 200 sets of manufacturing equipment including forging, CNCs, and assembly production lines, in order to make quick responses to market changes.

  • Standard Brass Valves and Fittings.
  • DZR Brass Valves and Fittings.
  • Lead Free Brass Valves and Fittings.
  • Water Hammer Arrester and Valves.
