1/4 Turn Supply Stops

1/4 Turn Supply Stops
Technical Reference:
Forged Lead Free☑brass body
Chrome plated and rough brass
Pressure Rating: 125 psi/ 180°F
Precision machined brass ball is specially engineered and mated with PTFE seats to provide smooth
operation without freeze ups even after long periods of non-use
Two high-performance o-rings withstand high temperatures and corrosion from harsh water environments
100% leak tested
1/4 Turn Supply Stops

1/4 Turn Supply Stops

PREV：1/4 Turn Supply Stops
NEXT：1/4 Turn Supply Stops

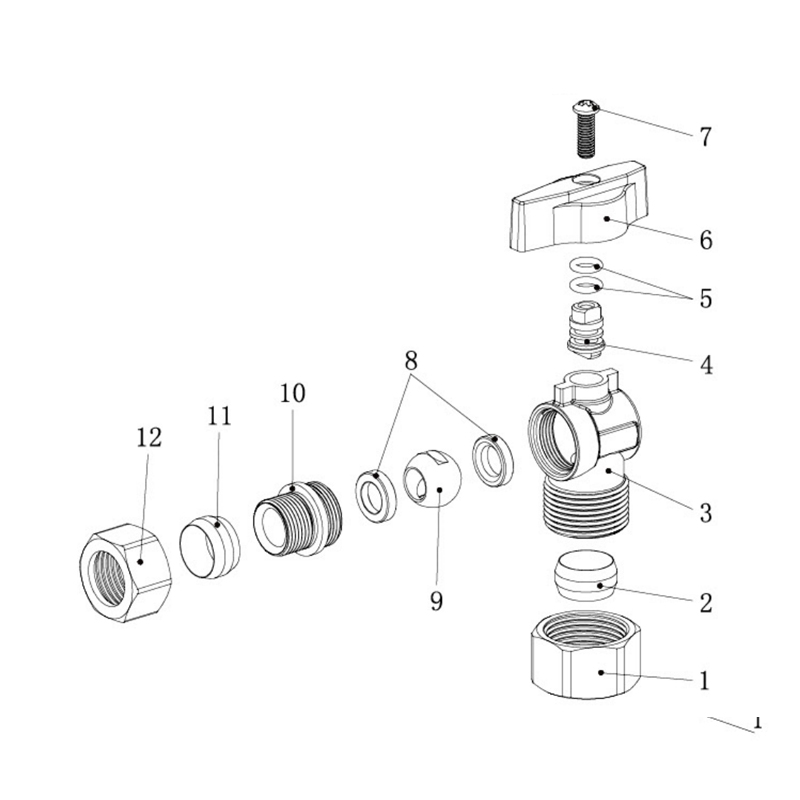

NO. Name Material Qty.
1 Compression Nut Brass 1
2 Sleeve Copper 1
3 Body Lead Free Brass 1
4 Stem Brass 1
5 O-ring NBR 2
6 Handle Zinc 1
7 Screw Steel 1
8 Ball seat PTFE 2
9 Ball Lead Free Brass 1
10 Adapter Lead Free Brass 1
11 Sleeve Copper 1
12 Comoression Nut Brass 1
